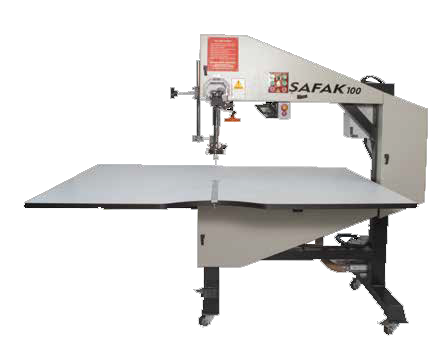

ŞAFAK 100 HH Fabric Band Knife Machine

SPECIFICATIONS OF THE BANDKNIFE MACHINE

  • Vibration free sturdy design
  • Adjustable bandknife safety housing
  • Lathed and balanced aluminium bandknife wheels with attrition firm special rubber coating
  • Precisions sharpening device with dust protecting transparent accrylic cover
  • Bandknife tensioning device and tension indicator
  • Height adjustable knife guide with safety devices
  • Dust plate
  • Operation indicator lamp
  • Formica coated table and exchangable table center

Options

  • Air biower and air cushioned table
  • Variable speed with frequency control
BANDKNIFE CUTTING MACHINE- TECHNICAL SPECIFICATIONS
MODEL
BAND KNIFE MACHINES 100
CUTTING HEIGHT 250mm
ARM EXTENTION 1000mm
TABLE SIZE 1900 x 1380 mm
OVERALL DIMENSION 2180x1380x1760mm
BANDKNIFE SIZE 4120mm
BANDKNIFE SPEED 90 mt/dak (m/min)
BANDKNIFE SPEED (OPTIONAL) 0-120 mt/dak (m/min)
WHEELS QUANTY 4
VOLTAGE 220/380V 50 Hz
MOTOR POWER 1,1 kW
